Aplicable Scope

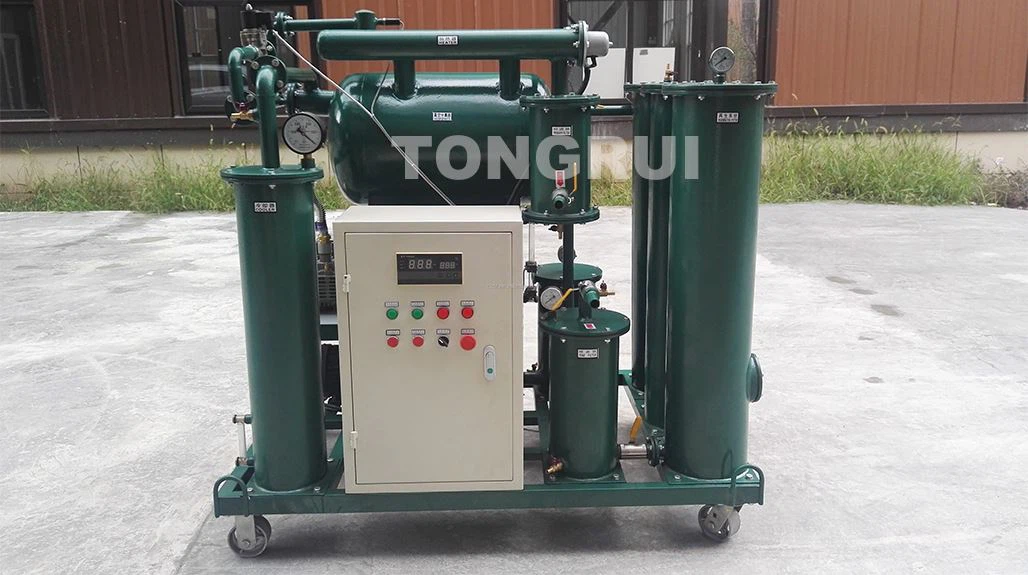

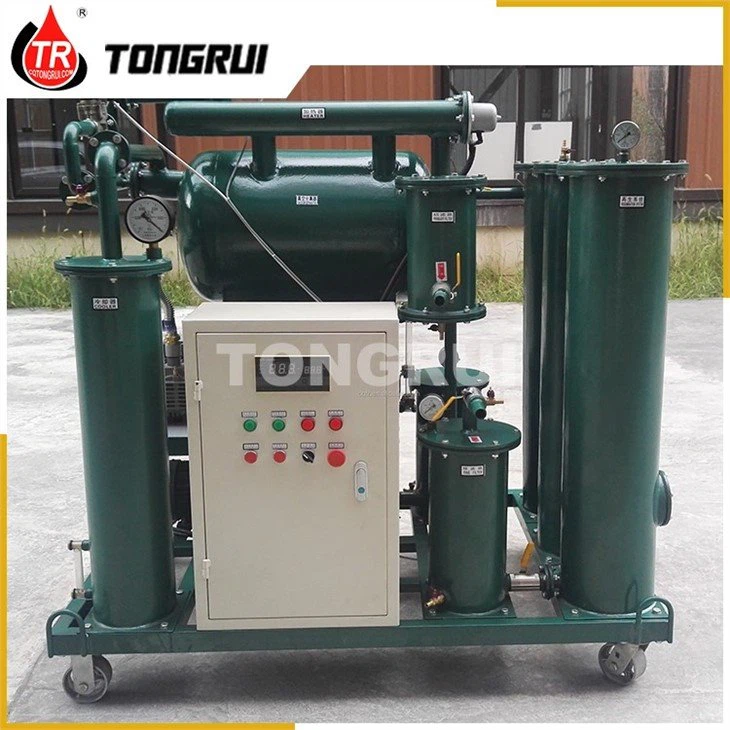

ZJL MultiFunctional Vacuum transformer oil purification plant is mainly used to improve the properties of Transformer oil. It can remove trace free water, soluble water, gas, acid, free carbon(polarity material), suspended particles and other impurities from the insulating oil, which includes transformer oil, break oil, capacitor oil, switch oil, mutual oil, cable oil and so on. What's important, ZJL has the decolorization plant that can change the color to limpid and clean one. so as to boost performance of transformers, circuit breakers, mutual inductors, cable and capacitors which has insulation system.
ZJL series specialize in purifying branded oil, insulating oil of high voltage and super high voltage transformer. Additionally, it is suitable for treating low viscosity lubrication oil.
Technical Specifications
|
Product Specifications |
||||||||
|
Item |
Unit |
ZJL-10 |
ZJL-20 |
ZJL-30 |
ZJL-50 |
ZJL-100 |
ZJL-150 |
ZJL-200 |
|
Flow rate |
L/H |
10 |
20 |
30 |
50 |
100 |
150 |
200 |
|
Vacuum degree |
Pa |
-0.08 -0.095 |
||||||
|
Working pressure |
Mpa |
Less than or equal to 0.3 |
Less than or equal to 0.5 |
|||||
|
Working temperature |
degree |
20 80 |
||||||
|
Power supply |
|
380V/50Hz (or as per requirement) |
||||||
|
Noise |
dB(A) |
Less than or equal to 75 |
Less than or equal to 80 |
|||||
|
Heating power |
kW |
15 |
18 |
30 |
45 |
72 |
96 |
144 |
|
Total power |
kW |
17 |
21 |
33 |
48 |
78 |
102 |
156 |
|
Inletoutlet size |
mm |
25 |
25 |
25 |
32 |
42 |
50 |
50 |
|
Oil index after treatment |
||||||||
|
Breakdown voltage |
KV |
Greater than or equal to 65 |
||||||
|
Water content |
ppm |
Less than or equal to 5 |
||||||
|
Gas content |
percent |
Less than or equal to 0.1 |
||||||
|
Impurity |
µm |
15 No free carbon |
||||||
|
Dielectric loss |
tg δ(90 degree ) percent |
Less than or equal to 0.005 |
||||||
Features

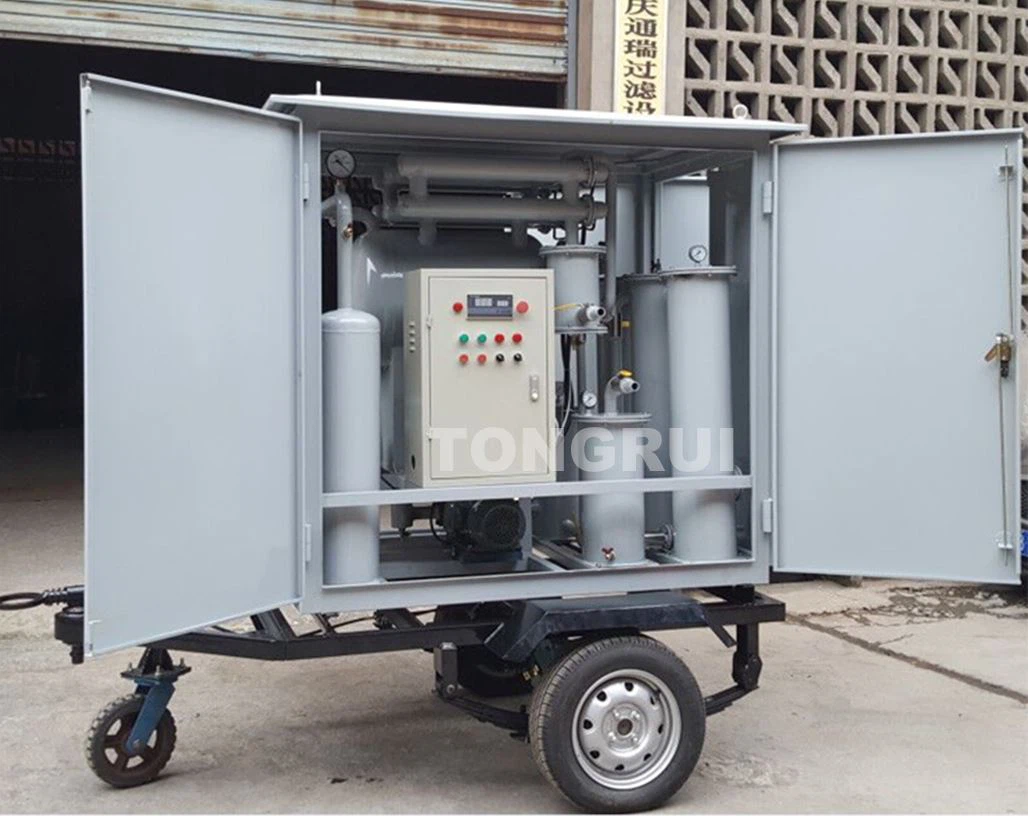

1. With vacuum pump and decolorization system, which use physiochemical reaction to change the brown waste transformer oil to limpid clean oil.
2. Eliminates water, gas and impurities effectively by utilizing the unique technology of 3D Stereo-Evaporation, hence improve the voltage withstand strength and the quality of oil, which ensures a safe operation of power generation equipment.
3. The transformer oil purification plant can inject the insulation oil into the transformer devices, and has the function of electrification online operation.
4. After treating, the oil can reach the new oil standard, which not only retains the active elements, but also improves the insulation of device and enhances the ability of anti-oxygen. Besides, the cost will be reduced by 90 percent compared with traditional way of oil-change.
5. High performance security system including pressure protection device and automatic temperature controller makes purifier operate safely.
6. Utilizes coacervation technology, coalescing technology, separating technology and refined purification technology. To remove free, soluble water,
carbon, free and dissolved gases and particulate matters from insulating oil effectively and rapidly.
7. This transformer oil purification plant can work independently, also it can work with the oil regeneration system that can eliminate the acid, the color and reduce the PH value effectively, then further enhance the insulation value of oil.
8. Online operation, and easy handling and maintenance.

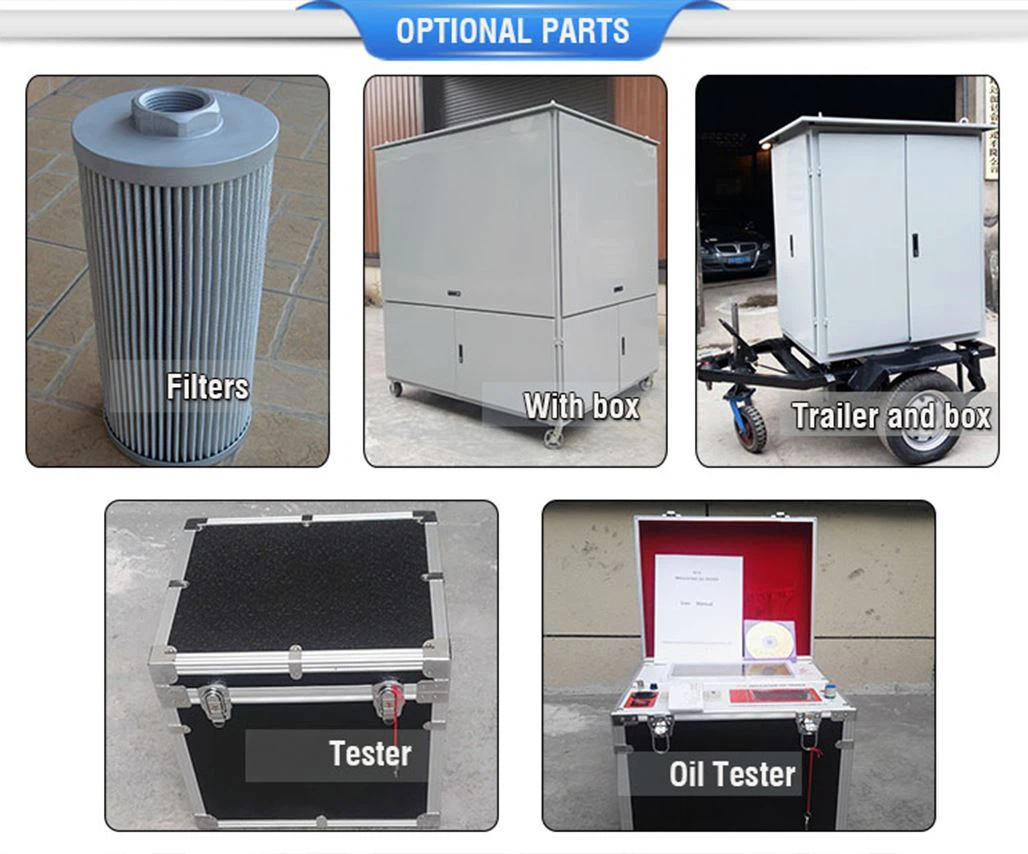

OPTIONAL MODE
1 The customers' request can be met by adopting PLC intelligent control. Touch screen and dynamical display.
2 On online water tester is available.
3 VFD (Variable Frequency Drive) is available.
4 Flow meter with accumulated function is available.
5 Extra system of pumping vacuum for transformer is available.

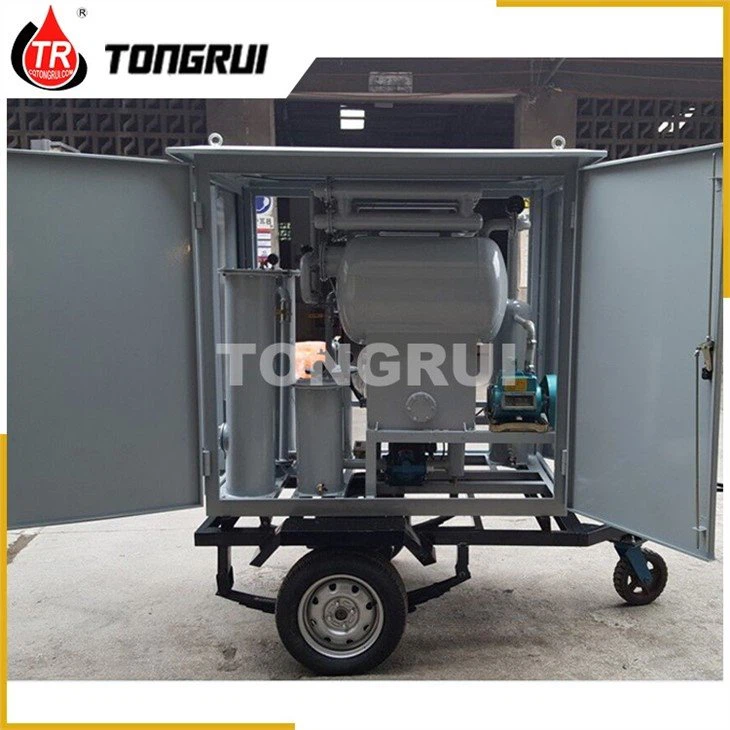

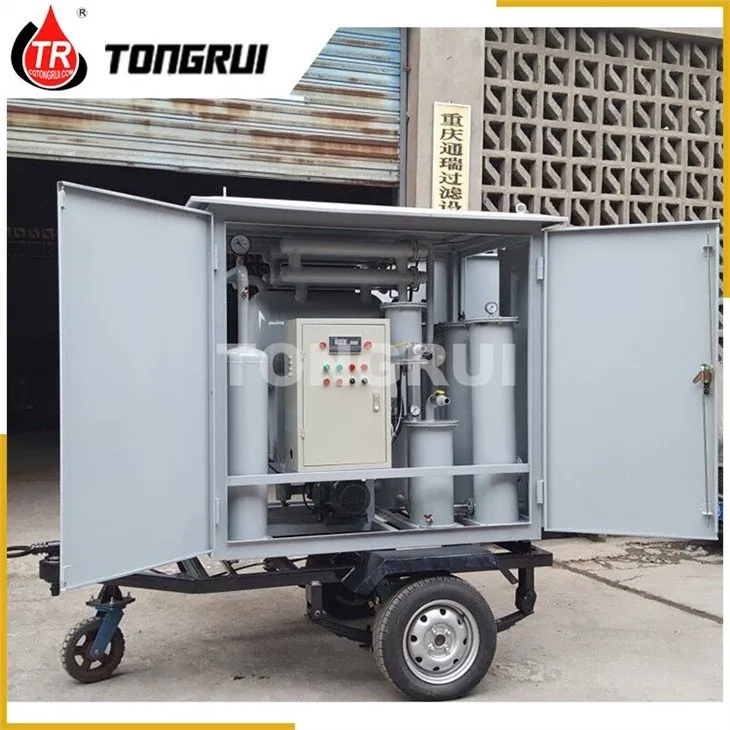

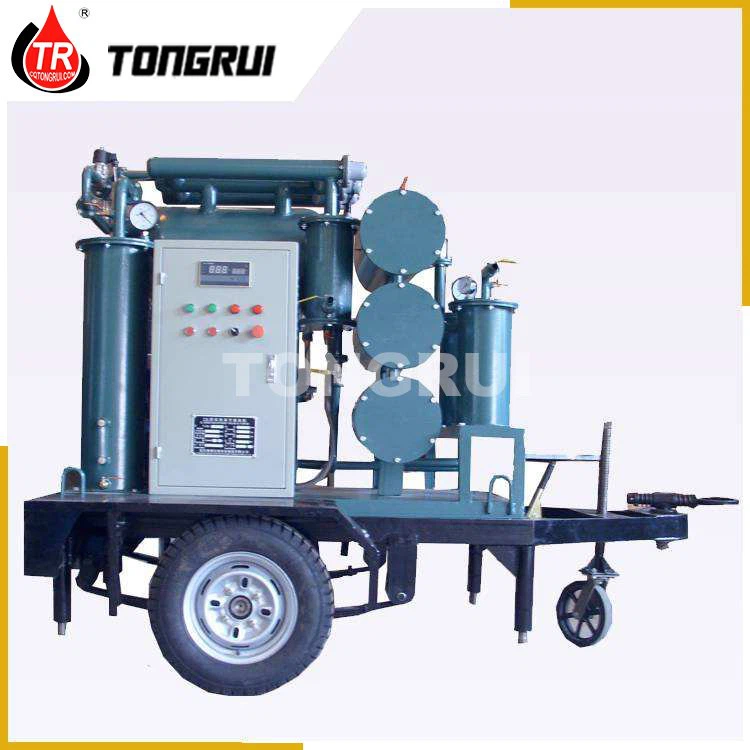

6 Available in mobile option. immovable option and trailer.
7 Oil purifier can be made in hermetical, canopy-covering or open and frame style.
